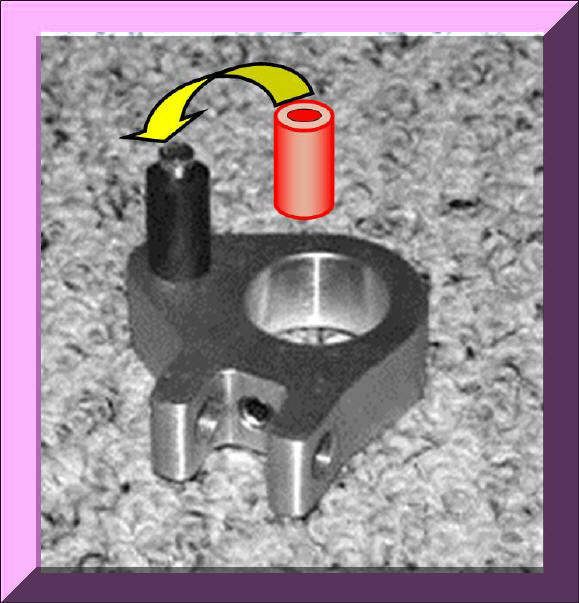

Reduced Flow Range Model

Some Flowmeter and Regulator/Flowmeter Models can utilize a special "Flow Rate Limiter" with a "Reduced Flow Range."  See Table Below.

This model of the WAT-FRLL may be useful to keep the range of allowable shielding gas flow within specific Welding Procedure Specifications (WPS).

If you are interested in this model, please email for Model Number and Price

  CLICK TO  EMAIL



WAT FRLL and Special WAT FRLLS Mounted on

Several Flowmeter and Regulator/Flowmeter Models


Shielding Gas Source

Brand

(note 1)

 Model FRLL Model

Max Flow (2)

Set As Desired

 Min Flow
Cylinder ESABTM R-33 (3) Standard 40 CFH 23 CFH
Reduced Range 40 CFH 30 CFH
Pipeline ESABTM L-33 (3) Standard 40 CFH 23 CFH
Reduced Range 40 CFH 30 CFH
Cylinder ESABTM R5007

R50-FM

 Standard (4) 40 CFH 11 CFH
Reduced Range 40 CFH 25 CFH
Pipeline ESABTM L-32 Standard (4) 40 CFH 11 CFH
Reduced Range 40 CFH 25 CFH

Footnotes:

1) ESAB is a registered trademark of ESAB Welding and Cutting Products; Victor is a registered trademark of Thermadyne Holdings.   This product or WA Technology, LLC are not affiliated with these companies.

2) The Max Flow was arbitrarily set at 40 CFH to show what minimum flow would be available at that setting.  The Max Flow can be set at any level desired before the FRL is locked in place.

3) Valve placement in this model may require mounting with the lock pointed up.

4) It is also possible to mount with the lock pointed up and essentially lock the flow at the desired setting.




Save over $1000 per year per welder and improve weld starts with Payback measured in weeks!!
* US Patent  # 6,610,957;  "Welding Shielding Gas Saver Device" August 26, 2003,  Patent Pending in other countries.   The "Flow Rate Limiter" device is
 covered by 2008 US patent #7,462,709.  Other site material may be covered under our 2006 US Patents # 7,015,412 or # 7,019,248 .
